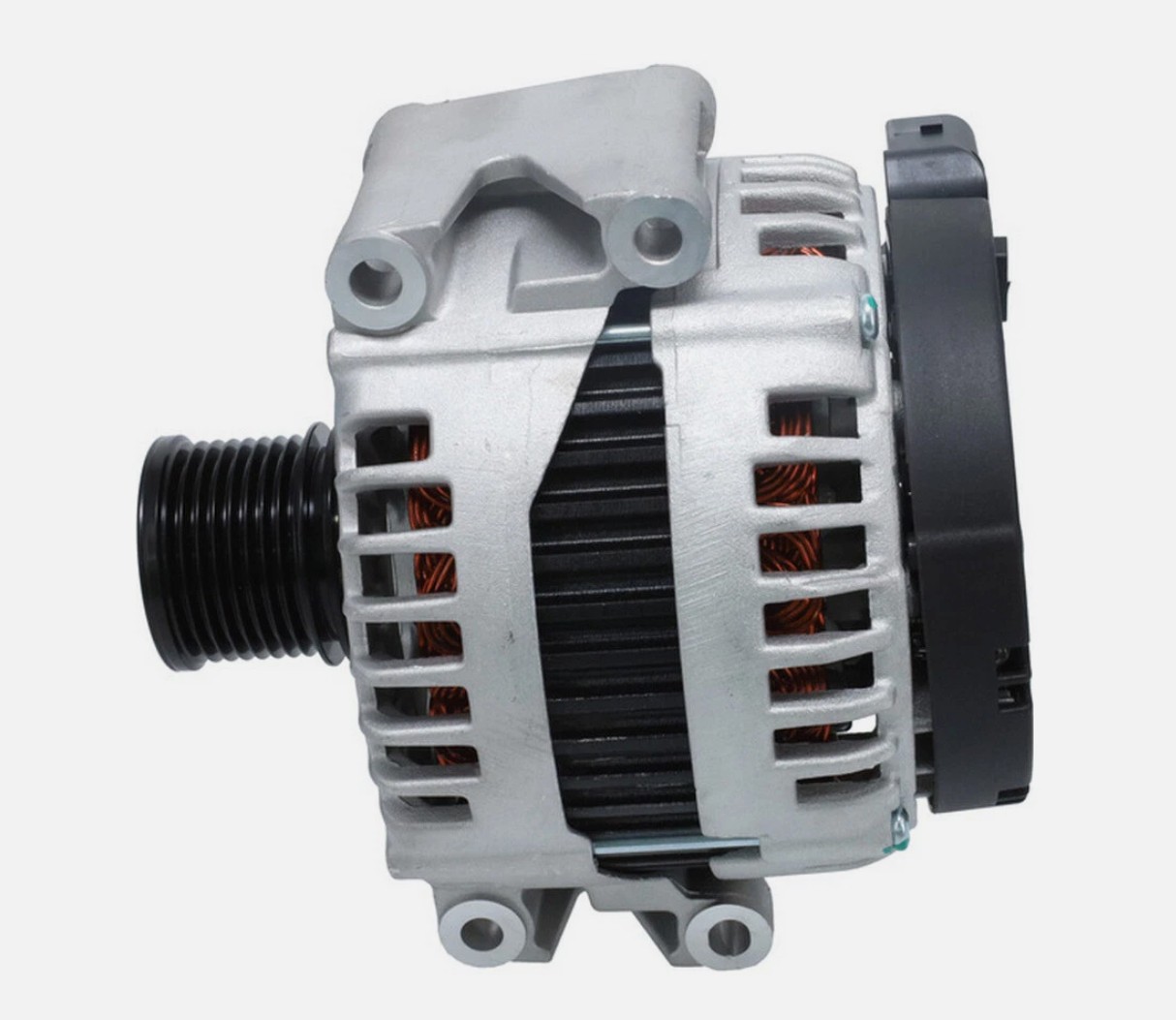

BOSCH ALTERNATOR 1986A01264
BOSCH ALTERNATOR 1986A01264.
- Brand
- BOSCH
- Manufacturer part number
- 1986A01264
- SKU
- EPE12742
- Price
- R 10806.40
- Availability
- In stock
Verified Vehicle Compatibility
Verified vehicle applications: 6 across 1 makes. Confirm suitability for your vehicle before purchase.
| Vehicle | Years | Engine model | Engine size | Position |
|---|---|---|---|---|
| MERCEDES-BENZ R 320 CDI 4MATIC | 2005 - 2009 | OM 642.950 | Not supplied | Not supplied |
| MERCEDES-BENZ S 320 CDI | 2005 - 2009 | OM 642.930 | Not supplied | Not supplied |
| MERCEDES-BENZ GL 320 CDI 4MATIC | 2006 - 2009 | OM 642.940 | Not supplied | Not supplied |
| MERCEDES-BENZ S 320 CDI 4MATIC | 2006 - 2009 | OM 642.932 | Not supplied | Not supplied |
| MERCEDES-BENZ ML 280 CDI 4MATIC | 2005 - 2009 | OM 642.940 | Not supplied | Not supplied |
| MERCEDES-BENZ ML 320 CDI 4MATIC | 2005 - 2009 | OM 642.940 | Not supplied | Not supplied |
Technical Specifications
- Length (unpacked)
- 195 mm
- Plug drawing identifier
- 166
- Production information
- Check/replace drive belt on alternator replacement.
- Pulley diameter
- 50 mm
- Article status
- Standard
- Belt pulley
- with free-wheeling pulley
- Coupling clamp
- B+(M8)
- Designation
- Alternator
- Direction of rotation
- Clockwise direction of rotation
- Fastening type
- Direct mounting
- Independent aftermarket part (IAM)
- 1 986 A01 264
- Marketing number
- AL0872NW
- Number of grooves
- 8
- Pulley distance
- 31,5 mm
- Rated current
- 220 A
- Rated voltage
- 14 V
- Spaced double swing arm
- 56 mm
- Supporting arm hole
- 9,0 / 8,0
- Swivel arm hole
- 9,0 / 8,5
- Type formula
- ALT 14V 220A (R)
- Vacuum pump
- excl. vacuum pump
OE / Reference Numbers
- OE · MERCEDES-BENZ
- 013 154 09 02
- OE · MERCEDES-BENZ
- 013 154 09 02 80
- OE · MERCEDES-BENZ
- A 013 154 09 02
- OE · MERCEDES-BENZ
- A 013 154 09 02 80
