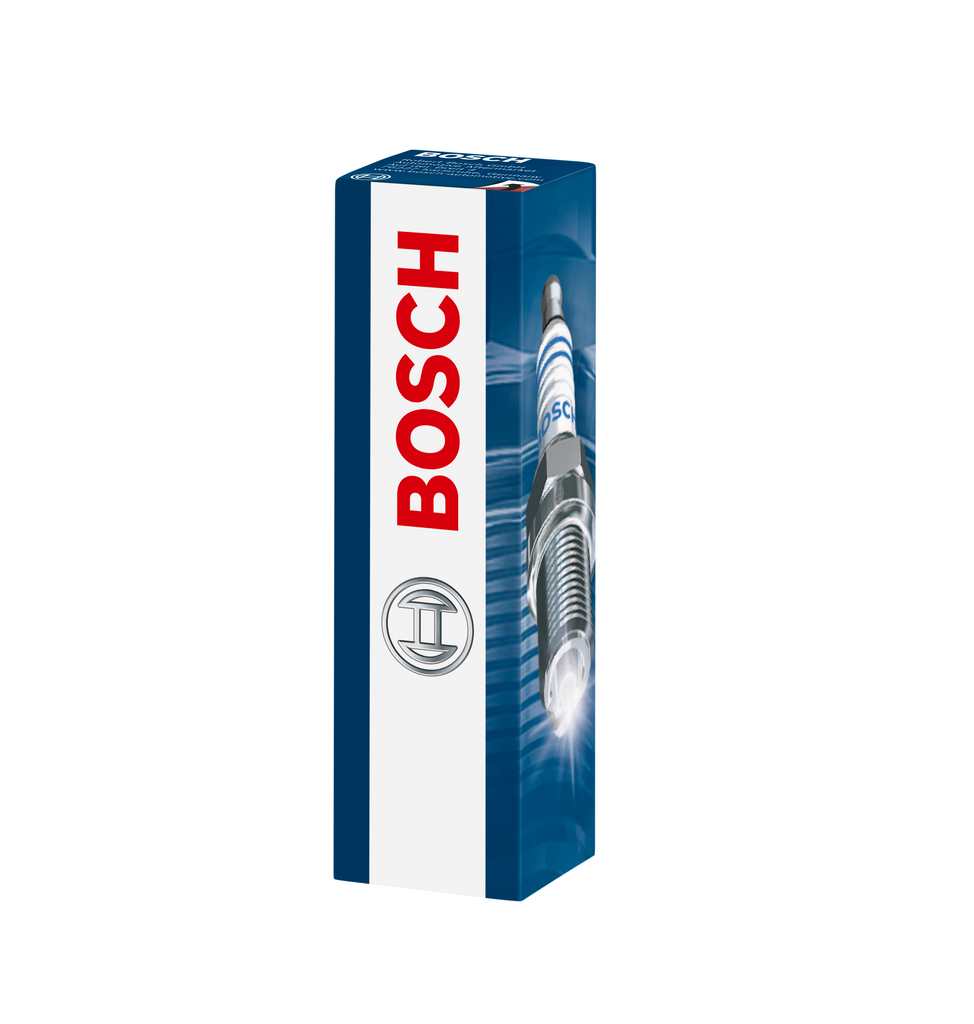

BOSCH SPARK PLUG 0241240609
BOSCH SPARK PLUG 0241240609.
- Brand
- BOSCH
- Manufacturer part number
- 0241240609
- SKU
- EPE00102
- Price
- R 70.40
- Availability
- In stock
Technical Specifications
- Center electrode material
- Ni alloy
- Electrode gap
- 0,8 mm
- Ground electrode material
- Ni alloy
- Length (unpacked)
- 75,3 mm
- Number of ground electrodes
- 3
- Thread
- M 14 x 1,25
- Thread length
- 19 mm
- Width (unpacked)
- 19 mm
- Width across flats
- 16 mm
- Article status
- Standard
- Designation
- Spark plug, nickel
- Interference suppression / burn-off restistor
- 0 kOhm
- Part number
- 0 241 240 609
- Sealing seat
- flat-mouldable
- Search number (KSN)
- 7447
- Spark position
- 5 mm
- Tightening torque
- 28 Nm
- Tightening torque (ft.lbs)
- 21 FT. LBS
- Type formula
- F 6 DTC
- Type of connection
- Detachable DIN/SAE nut
OE / Reference Numbers
- OE · AUDI
- 101 000 004 AA
- OE · AUDI
- 101 000 017 AA
- OE · AUDI
- 101 000 041 AE
- OE · NISSAN
- 22401 Y9066
- OE · SEAT
- 101 000 004 AA
- OE · SEAT
- 101 000 041 AE
- OE · VW (VOLKSWAGEN)
- 101 000 003 AA
- OE · VW (VOLKSWAGEN)
- 101 000 004 AA
- OE · VW (VOLKSWAGEN)
- 101 000 004 AB
- OE · VW (VOLKSWAGEN)
- 101 000 017 AA
- OE · VW (VOLKSWAGEN)
- 101 000 041 AE
- OE · VW (VOLKSWAGEN)
- 191 905 450 J
- OE · VW (VOLKSWAGEN)
- 191 905 452 H
- OE · VW (VOLKSWAGEN)
- KX9 050 040 1
- OE · VW (VOLKSWAGEN)
- N 100 807 02
- OE · VW (VOLKSWAGEN)
- N 101 172 01
- OE · VW (VOLKSWAGEN)
- N 101 665 02
- OE · VW (VOLKSWAGEN)
- ZVP 121 086 C
