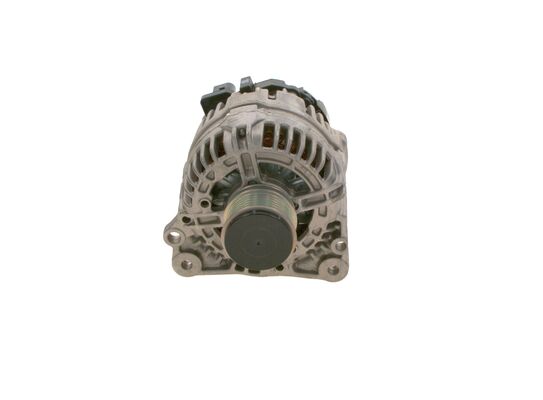

BOSCH ALTERNATOR 0124325012
BOSCH ALTERNATOR 0124325012.
- Brand
- BOSCH
- Manufacturer part number
- 0124325012
- SKU
- EPE00047
- Price
- R 7724.20
- Availability
- In stock
Verified Vehicle Compatibility
Verified vehicle applications: 19 across 2 makes. Confirm suitability for your vehicle before purchase.
| Vehicle | Years | Engine model | Engine size | Position |
|---|---|---|---|---|
| TOYOTA Corolla 160i GL MY94 | Not supplied | Not supplied | Not supplied | Not supplied |
| TOYOTA Corolla 160i GL MY96 | Not supplied | Not supplied | Not supplied | Not supplied |
| TOYOTA Corolla 160i GL PS MY96 | Not supplied | Not supplied | Not supplied | Not supplied |
| TOYOTA Corolla 160i GLE MY96 | Not supplied | Not supplied | Not supplied | Not supplied |
| TOYOTA Corolla 160i GLE AT MY96 | Not supplied | Not supplied | Not supplied | Not supplied |
| TOYOTA Corolla 160i GLE PS | Not supplied | Not supplied | Not supplied | Not supplied |
| TOYOTA Corolla 160i GL MY99 | Not supplied | Not supplied | Not supplied | Not supplied |
| TOYOTA Corolla 160i GLE MY99 | Not supplied | Not supplied | Not supplied | Not supplied |
| TOYOTA Corolla 160i GLE AT MY97 | Not supplied | Not supplied | Not supplied | Not supplied |
| TOYOTA Corolla 160i GLS MY01 | Not supplied | Not supplied | Not supplied | Not supplied |
| TOYOTA Corolla 160i GL Limited Edition | Not supplied | Not supplied | Not supplied | Not supplied |
| VW Polo 1.6 Trendline 5-dr | Not supplied | Not supplied | Not supplied | Not supplied |
| VW Polo 1.4 TDI Comfortline 5-dr Dsl | Not supplied | Not supplied | Not supplied | Not supplied |
| VW Polo Classic 1.4 TDI Comfortline Dsl | Not supplied | Not supplied | Not supplied | Not supplied |
| VW Polo 1.6 Comfortline 5-dr | Not supplied | Not supplied | Not supplied | Not supplied |
| VW Polo 1.6 Trendline 5-dr MY05 | Not supplied | Not supplied | Not supplied | Not supplied |
| VW Polo 1.4 TDI Trendline 5-dr Dsl MY05 | Not supplied | Not supplied | Not supplied | Not supplied |
| VW Polo 1.6 Comfortline 5-dr MY05 | Not supplied | Not supplied | Not supplied | Not supplied |
| VW Polo 1.6 Comfortline Special Edition 5-dr | Not supplied | Not supplied | Not supplied | Not supplied |
Technical Specifications
- Length (unpacked)
- 185 mm
- Production discontinuation
- 09/2024
- Production information
- Check/replace drive belt on alternator replacement.
- Pulley diameter
- 56 mm
- Angle of mounting hole
- 70 °
- Angle supporting arm hole
- 90.0
- Article status
- No longer available
- Belt pulley
- with free-wheeling pulley
- Designation
- Alternator
- Direction of rotation
- Clockwise direction of rotation
- Fastening type
- Double swivel arm
- Number of grooves
- 6
- Part number
- 0 124 325 012
- Position of fixing hole
- left
- Position of supporting arm hole
- left
- Rated current
- 90 A
- Rated voltage
- 14 V
- Spaced double swing arm
- 59 mm
- Supporting arm hole
- 8,50/M8
- Swivel arm hole
- 8,50
- Type
- Compact
- Type formula
- KCB1 (>) 14V 50/90A
- Vacuum pump
- excl. vacuum pump
OE / Reference Numbers
- OE · AUDI
- 045 903 023 E
- OE · AUDI
- 045903023
- OE · SEAT
- 045 903 023 B
- OE · SEAT
- 045903023
- OE · SKODA
- 045 903 023 B
- OE · SKODA
- 045903023
- OE · VW (VOLKSWAGEN)
- 045 903 023 B
- OE · VW (VOLKSWAGEN)
- 045 903 023 E
- OE · VW (VOLKSWAGEN)
- 045 903 025 B
- OE · VW (VOLKSWAGEN)
- 045903023
